三一X型支腿式混凝土泵车系列（Out482）基本操作说明

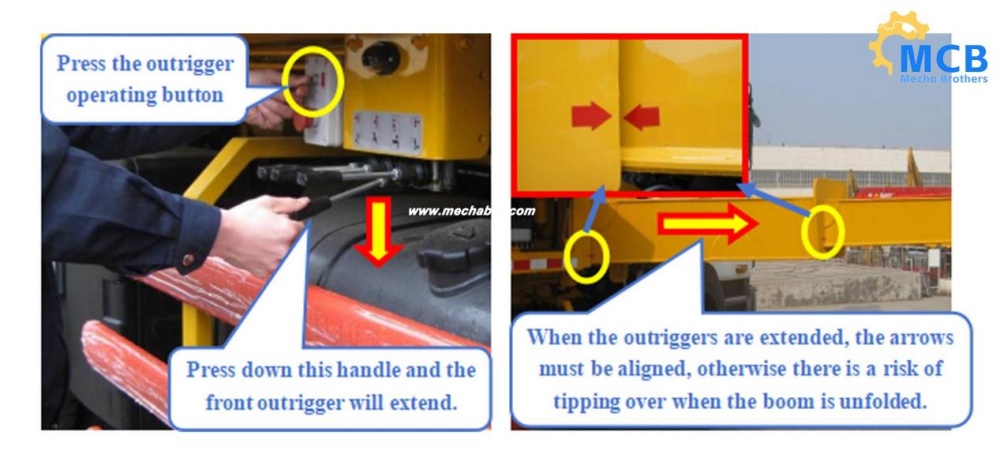

Operate the outrigger operating valve handle to unfold the front outriggers on both sides(with the front of the truck as the front)

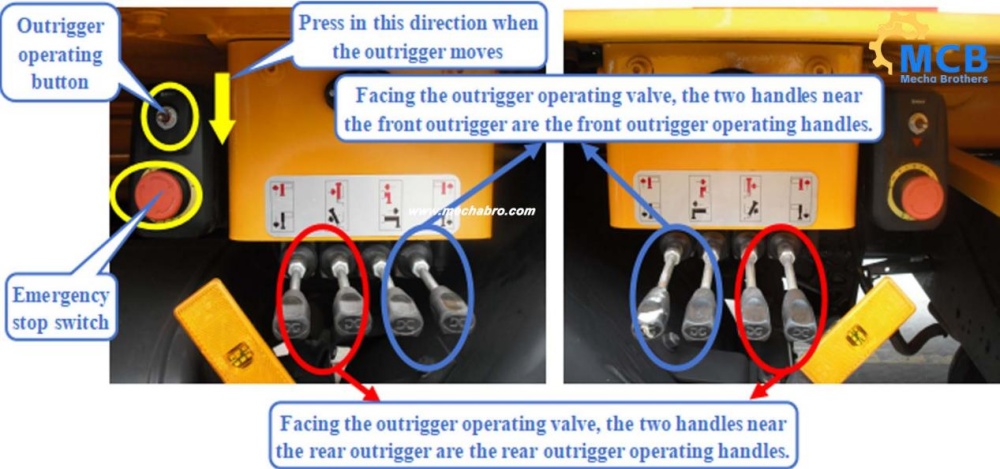

There is a set of outrigger operating valves on the left and right sides of the  泵车, which respectively control the operation of the”front”and “rear”outriggers on the right and left.

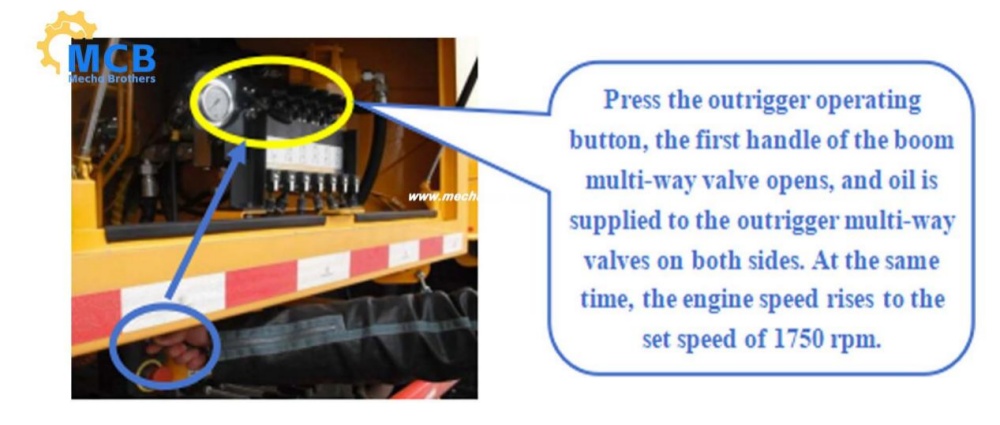

Before all outrigger operating valves operate, the outrigger operating button must be pressed, otherwise the outrigger valve operation will fail.

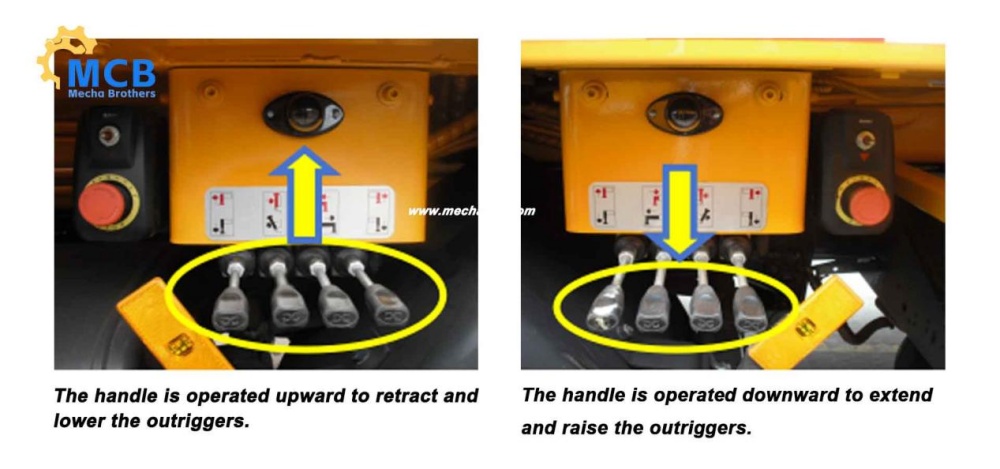

There is a set of outrigger operating valves on the left and right sides of the  泵车, which respectively control the”extension and contraction” operation of the front and rear outriggers on the left and right sides and the”lifting and lowering”operation of the outriggers.

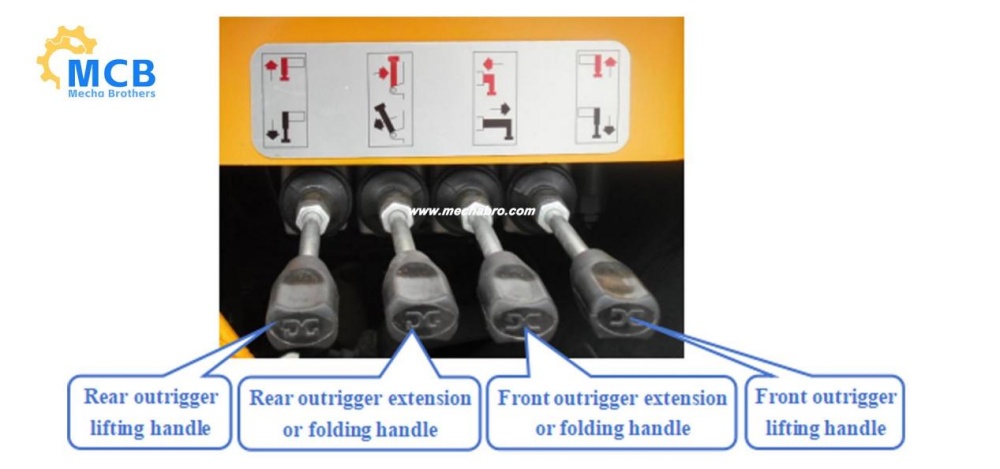

The function of the outrigger handle can be directly distinguished according to the outrigger operation mark (taking the right outrigger operation valve as an example).

5. According to the outrigger operation precautions, after padding the outrigger pads or forming a qualified supporting surface, support and raise the front outriggers on both sides.

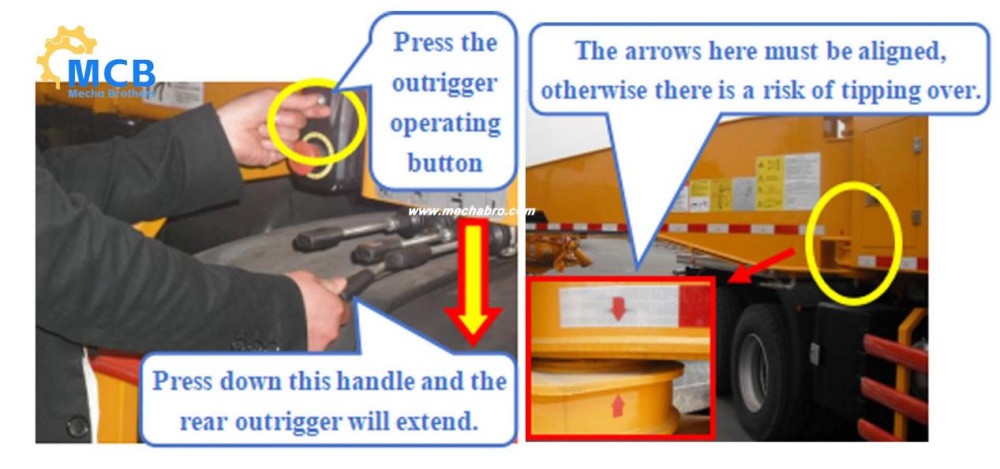

6. Operate the outrigger operating valve handle to open the rear outriggers on both sides. (take the right rear outrigger operation as an example)

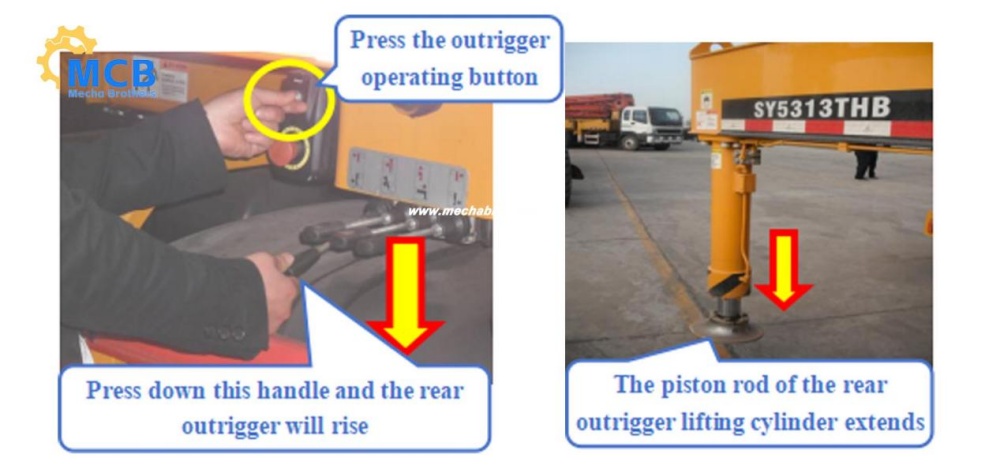

7. According to the outrigger operation precautions, after padding the outrigger pads or forming a qualified supporting surface, support and raise the rear outriggers on both sides.
